Allied Components International

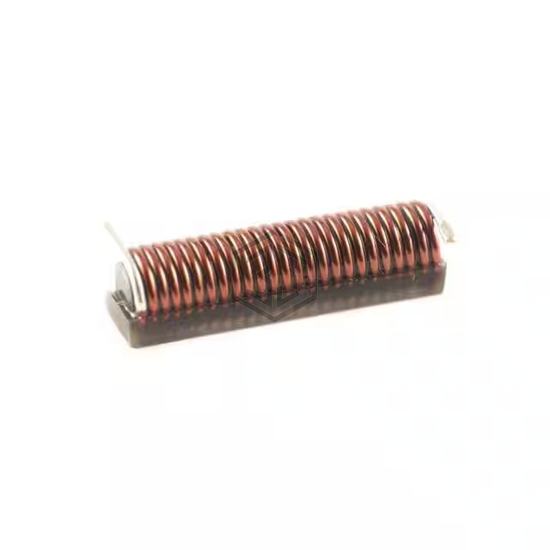

1.15uH 10% SMD Rod Inductor
SMAC0312-1R15K is a Fixed Inductors manufactured by Allied Components International. 1.15uH 10% SMD Rod Inductor. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.2 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 1.15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 235MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.460" L x 0.190" W (11.68mm x 4.83mm) |
| Height - Seated (Max) | 0.140" (3.55mm) |
Submit your RFQ for SMAC0312-1R15K and get a quote within 24 hours.
