Allied Components International
27000UH 10% RADIAL DRUM CORE

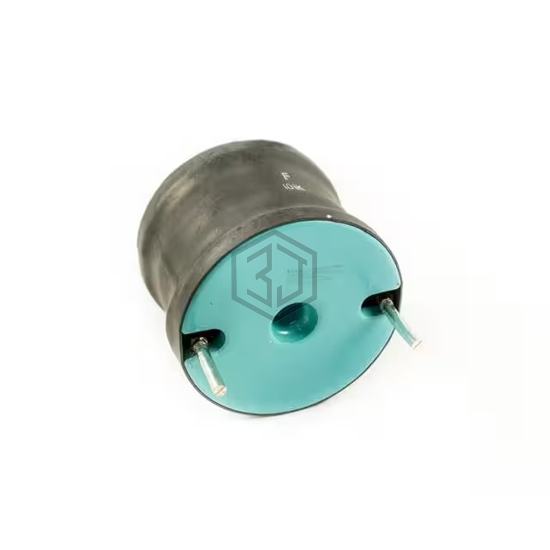

RDC60-273K-RC is a Fixed Inductors manufactured by Allied Components International. 27000UH 10% RADIAL DRUM CORE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 1.7 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 27 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.71Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 1.500" (38.10mm) |
Submit your RFQ for RDC60-273K-RC and get a quote within 24 hours.
