Allied Components International

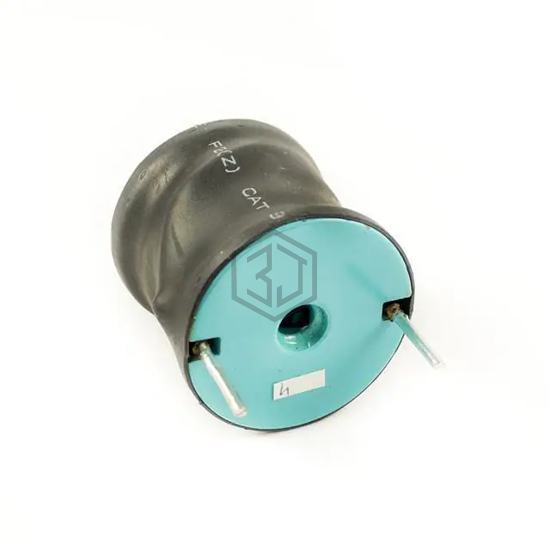

2200uH +/-10% Radial Drum Core
RDC50-222K-RC is a Fixed Inductors manufactured by Allied Components International. 2200uH +/-10% Radial Drum Core. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 5.5 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core |
| Material - Core | - |
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 4.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 338mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 1.500" Dia (38.10mm) |
| Height - Seated (Max) | 1.450" (36.83mm) |
Submit your RFQ for RDC50-222K-RC and get a quote within 24 hours.
