Allied Components International

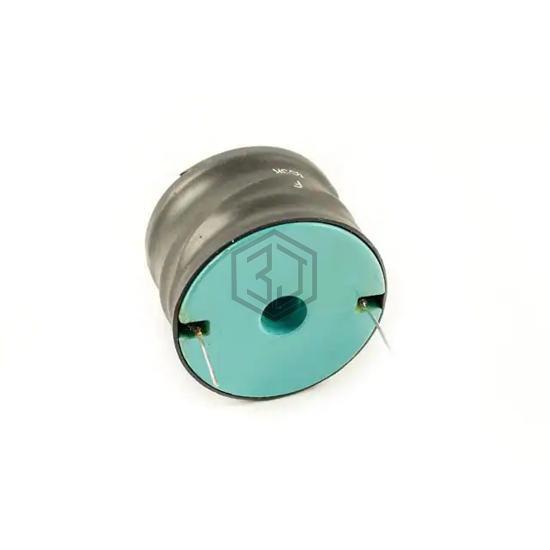

10UH 10% Radial Drum Core
RDC40-100K-RC is a Fixed Inductors manufactured by Allied Components International. 10UH 10% Radial Drum Core. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 27 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | 61A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 1.500" Dia (38.10mm) |
| Height - Seated (Max) | 1.030" (26.16mm) |
Submit your RFQ for RDC40-100K-RC and get a quote within 24 hours.
