Allied Components International

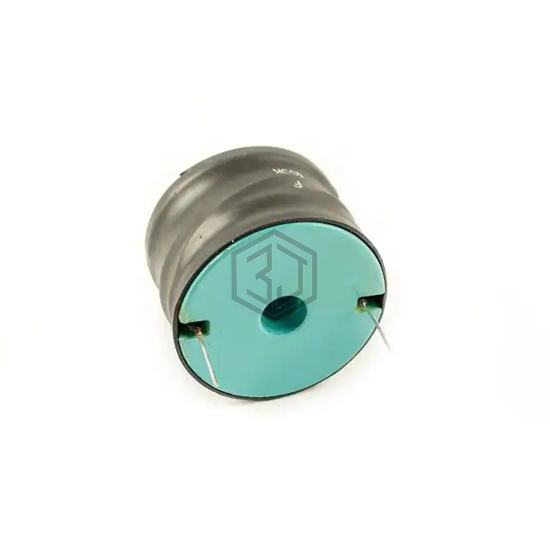

8.2 UH 20% Radial Drum Core
RDC20-8R2M-RC is a Fixed Inductors manufactured by Allied Components International. 8.2 UH 20% Radial Drum Core. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, current rating (amps) 11.4 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11.4 A |
| Current - Saturation (Isat) | 36A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | Radial |
| Size / Dimension | 0.825" Dia (20.96mm) |
| Height - Seated (Max) | 0.840" (21.34mm) |
Submit your RFQ for RDC20-8R2M-RC and get a quote within 24 hours.
