Allied Components International

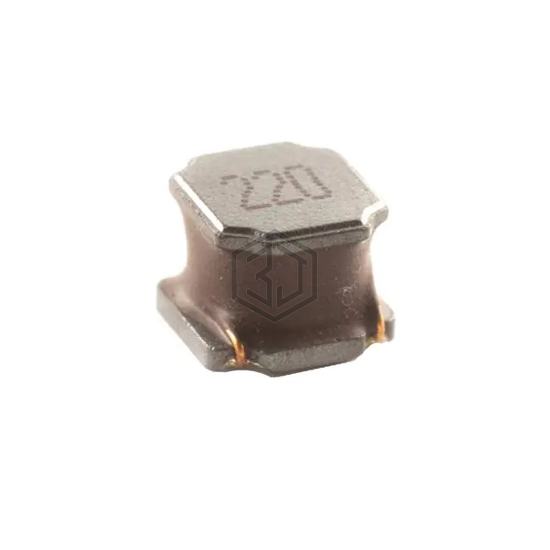

22UH 20% SMD PWR CHIP INDUCTOR
PCSV54-220M-RC is a Fixed Inductors manufactured by Allied Components International. 22UH 20% SMD PWR CHIP INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, package / case 2020 (5050 Metric), current rating (amps) 1.4 A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 135mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | 2020 |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for PCSV54-220M-RC and get a quote within 24 hours.
