Allied Components International

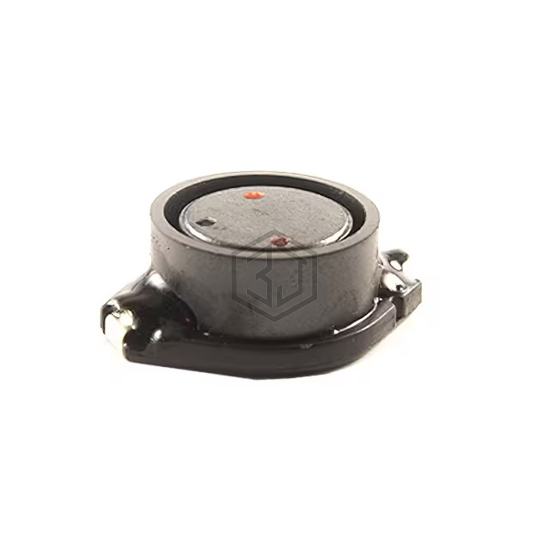

330uH +/-20% Power Chip Inductor
PCIS60-331M-RC is a Fixed Inductors manufactured by Allied Components International. 330uH +/-20% Power Chip Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 860 mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 860 mA |
| Current - Saturation (Isat) | 860mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 780mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.300" (7.62mm) |
Submit your RFQ for PCIS60-331M-RC and get a quote within 24 hours.
