Allied Components International

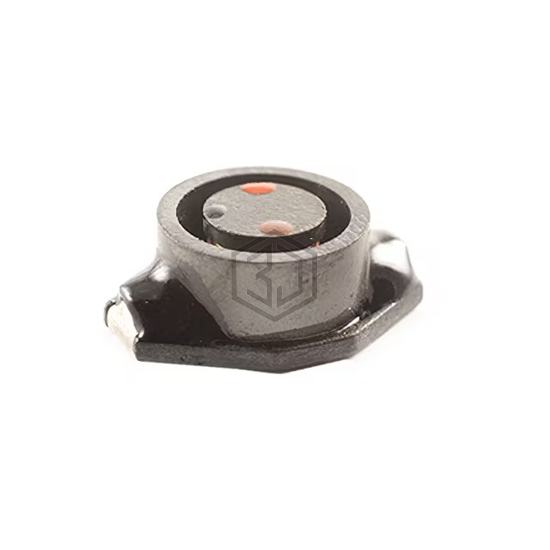

22uH +/-20% Power Chip Inductor
PCIS40-330M-RC is a Fixed Inductors manufactured by Allied Components International. 22uH +/-20% Power Chip Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.1 A.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 334mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
Submit your RFQ for PCIS40-330M-RC and get a quote within 24 hours.
