Allied Components International

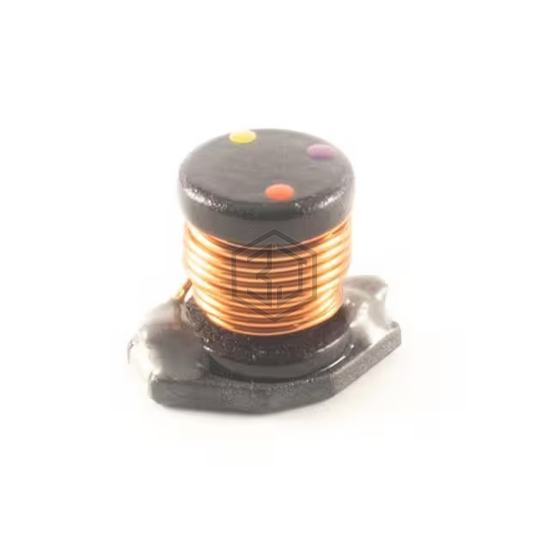

680uH +/-20% Power Chip Inductor
PCI50-681M-RC is a Fixed Inductors manufactured by Allied Components International. 680uH +/-20% Power Chip Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 200 mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | 1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.450" (11.43mm) |
Submit your RFQ for PCI50-681M-RC and get a quote within 24 hours.
