Allied Components International
1.0H 20% SMD MOLDED POWER CHOKE

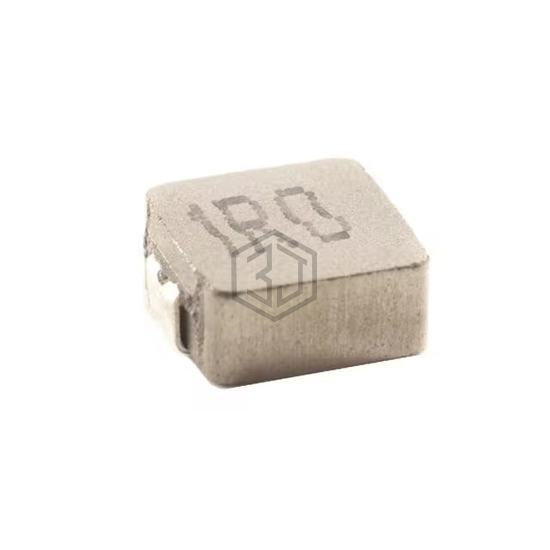

PCHC420R8-6R8M is a Fixed Inductors manufactured by Allied Components International. 1.0H 20% SMD MOLDED POWER CHOKE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 2 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | 2.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.181" L x 0.161" W (4.60mm x 4.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for PCHC420R8-6R8M and get a quote within 24 hours.
