Allied Components International
100UH 20% PWR CHIP HIGH CURRENT

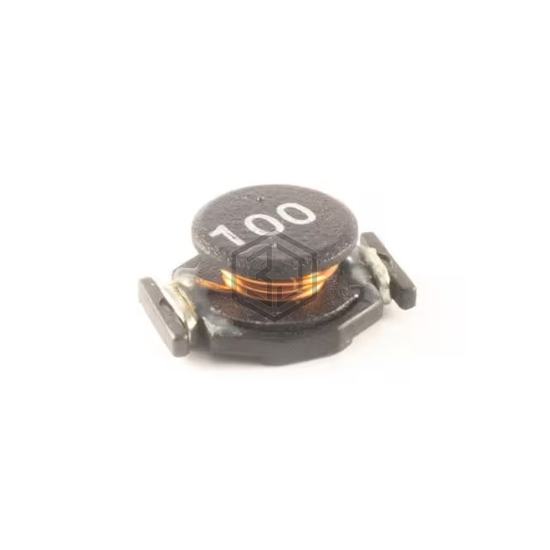

PCHC40-101M-RC is a Fixed Inductors manufactured by Allied Components International. 100UH 20% PWR CHIP HIGH CURRENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 950mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.390" W (13.21mm x 9.91mm) |
| Height - Seated (Max) | 0.250" (6.35mm) |
Submit your RFQ for PCHC40-101M-RC and get a quote within 24 hours.
