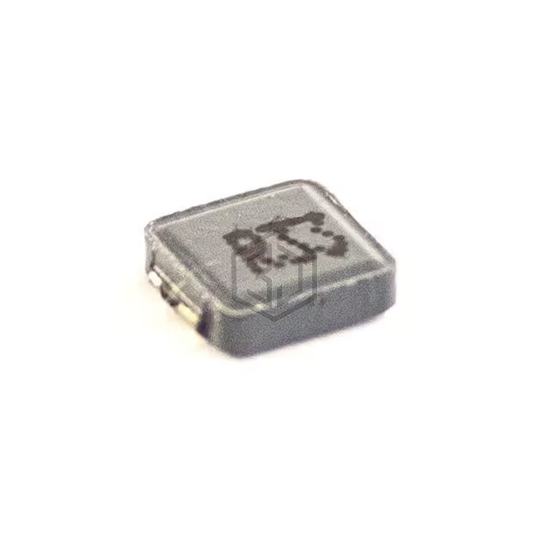

Allied Components International
.33UH, SMD POWER INDUCTOR
PCHC0412HP-R33M-RC is a Fixed Inductors manufactured by Allied Components International. .33UH, SMD POWER INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Carbonyl Powder |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for PCHC0412HP-R33M-RC and get a quote within 24 hours.
