Allied Components International
5.6uH+/-20% Pwr Choke Hi-Current

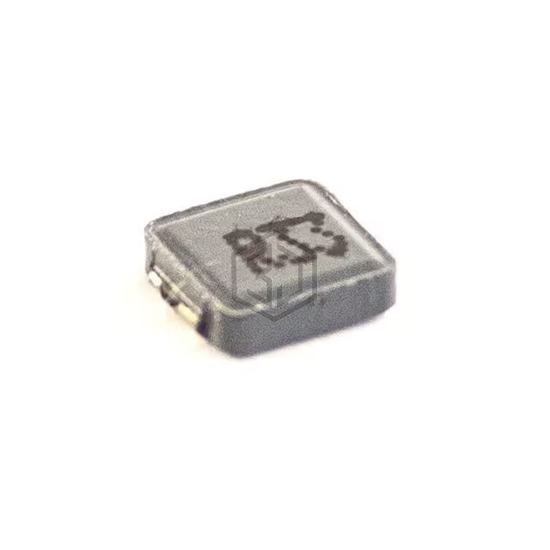

PCHC0412HP-5R6M-RC is a Fixed Inductors manufactured by Allied Components International. 5.6uH+/-20% Pwr Choke Hi-Current. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.7 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Carbonyl Powder |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 208mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for PCHC0412HP-5R6M-RC and get a quote within 24 hours.
