Allied Components International
2.2uH +/-20% SMD Power Chip Ind.

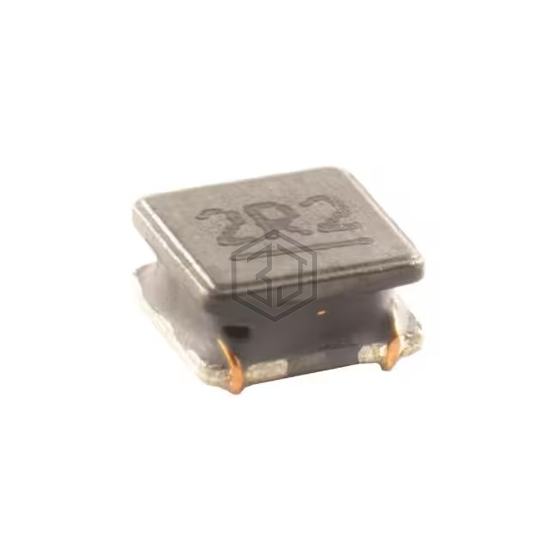

PCFV35-2R2M-RC is a Fixed Inductors manufactured by Allied Components International. 2.2uH +/-20% SMD Power Chip Ind.. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1212 (3030 Metric), current rating (amps) 1.8 A.
In Stock: 2,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 2.07A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 90mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 3030 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for PCFV35-2R2M-RC and get a quote within 24 hours.
