10uH +/-5% Ferrite Core Chip

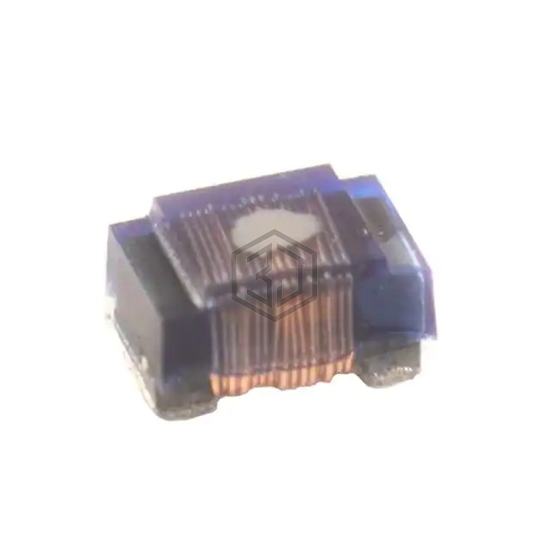

LS03-100J-RC is a Fixed Inductors manufactured by Allied Components International. 10uH +/-5% Ferrite Core Chip. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), size / dimension 0.071" L x 0.049" W (1.80mm x 1.25mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 300mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.8Ohm Max |
| Q @ Freq | 19 @ 7.9MHz |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.25mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
