Allied Components International

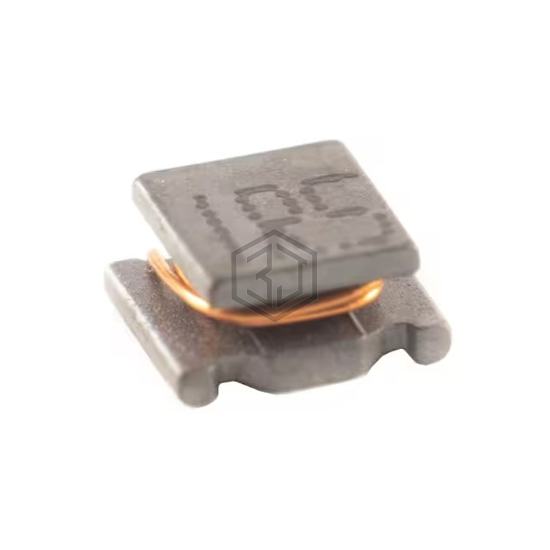

1.5uH +/-30% Hi-Current Inductor
LRC27HC-1R5T-RC is a Fixed Inductors manufactured by Allied Components International. 1.5uH +/-30% Hi-Current Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 1.75 A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 1.75A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 57mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
Submit your RFQ for LRC27HC-1R5T-RC and get a quote within 24 hours.
