Allied Components International
2.2uH +/-20% Lo-Res Chip

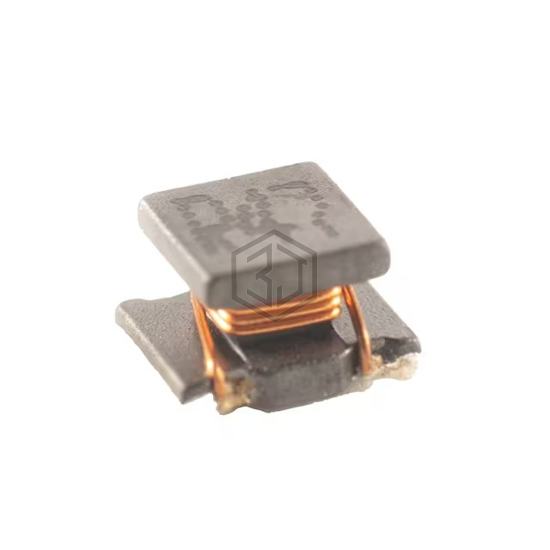

LRC20L-2R2M-RC is a Fixed Inductors manufactured by Allied Components International. 2.2uH +/-20% Lo-Res Chip. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 790 mA.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 790 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 97mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 64MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.087" (2.21mm) |
Submit your RFQ for LRC20L-2R2M-RC and get a quote within 24 hours.
