Allied Components International
4.0mH Min 5.4A Current Sensing

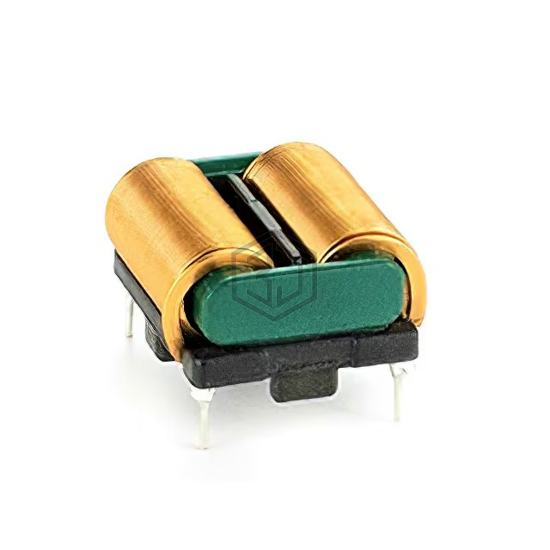

HFWLF2418-402 is a Common Mode Chokes manufactured by Allied Components International. 4.0mH Min 5.4A Current Sensing. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Horizontal, 4 PC Pin, size / dimension 1.043" L x 0.945" W (26.50mm x 24.00mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | - |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 4 mH @ 1 kHz |
| Current Rating (Max) | 5.4A |
| DC Resistance (DCR) (Max) | 80mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.043" L x 0.945" W (26.50mm x 24.00mm) |
| Height (Max) | 0.610" (15.50mm) |
| Package / Case | Horizontal, 4 PC Pin |
Submit your RFQ for HFWLF2418-402 and get a quote within 24 hours.
