Allied Components International

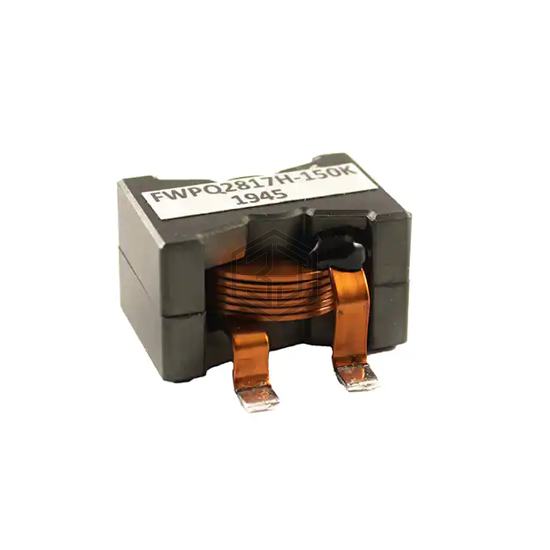

15UH 10% Flat Wire SMD Pwr Ind
FWTPQ2817H-150K is a Fixed Inductors manufactured by Allied Components International. 15UH 10% Flat Wire SMD Pwr Ind. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 28 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | 21.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.82mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.102" L x 0.760" W (28.00mm x 19.30mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
Submit your RFQ for FWTPQ2817H-150K and get a quote within 24 hours.
