Allied Components International
6.8UH 20% Flat Wire SMD PwrInd

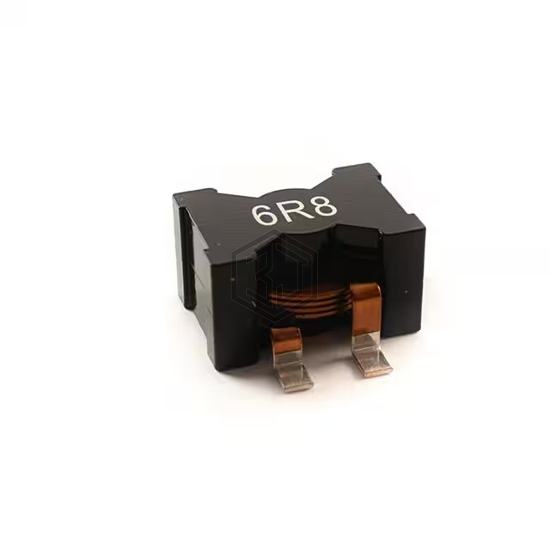

FWPQ2814-6R8M-RC is a Fixed Inductors manufactured by Allied Components International. 6.8UH 20% Flat Wire SMD PwrInd. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 3-SMD, J-Lead, current rating (amps) 18 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 34A |
| Shielding | - |
| DC Resistance (DCR) | 7.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.858" L x 0.846" W (21.80mm x 21.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for FWPQ2814-6R8M-RC and get a quote within 24 hours.
