Allied Components International
1000nH +/-10% Ceramic Core Chip

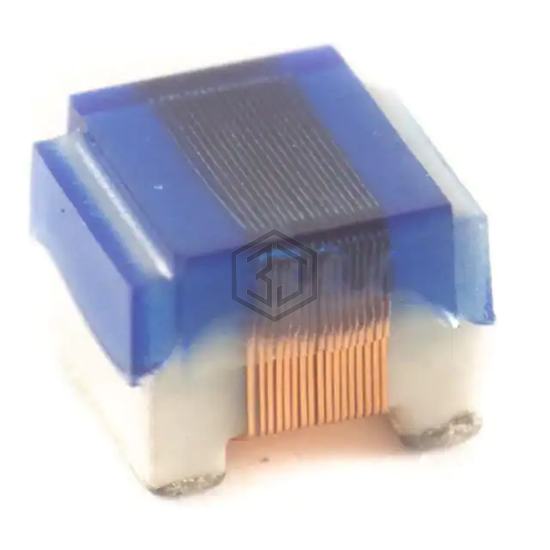

CC10-1000NK-RC is a Fixed Inductors manufactured by Allied Components International. 1000nH +/-10% Ceramic Core Chip. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 370 mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 370 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.75Ohm Max |
| Q @ Freq | 35 @ 50MHz |
| Frequency - Self Resonant | 290MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for CC10-1000NK-RC and get a quote within 24 hours.
