Allied Components International
42.5UH10% EFD20 H.F. TRANS.

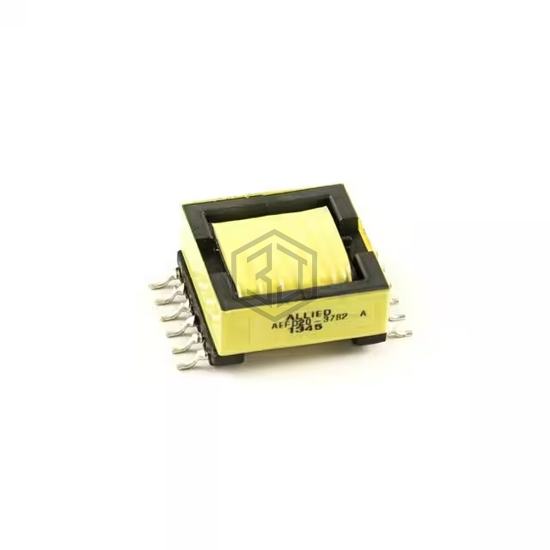

AEFD20-3782-A is a Switching Converter, SMPS Transformers manufactured by Allied Components International. 42.5UH10% EFD20 H.F. TRANS.. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, size / dimension 0.866" L x 0.866" W (22.00mm x 22.00mm), frequency 250kHz.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 20 ~ 60V |
| Voltage - Auxiliary | 12V @ 50mA |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | 42.5µH |
| Frequency | 250kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.866" L x 0.866" W (22.00mm x 22.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Footprint | 1.128" L x 0.866" W (28.65mm x 22.00mm) |
| Style | - |
Submit your RFQ for AEFD20-3782-A and get a quote within 24 hours.
