Allied Components International
1.17MH 35% COMMON MODE CHOKE

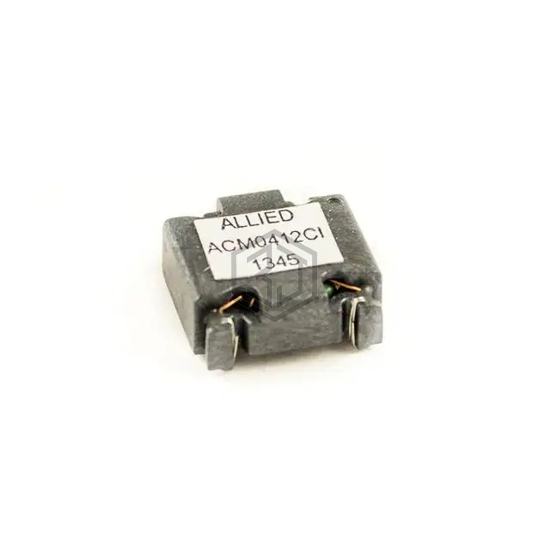

ACM0412CI is a Common Mode Chokes manufactured by Allied Components International. 1.17MH 35% COMMON MODE CHOKE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 120°C, package / case Horizontal, 4 PC Pad, size / dimension 0.500" L x 0.500" W (12.70mm x 12.70mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 1.17 mH @ 10 kHz |
| Current Rating (Max) | 7.2A |
| DC Resistance (DCR) (Max) | 200mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 120°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height (Max) | 0.215" (5.46mm) |
| Package / Case | Horizontal, 4 PC Pad |
