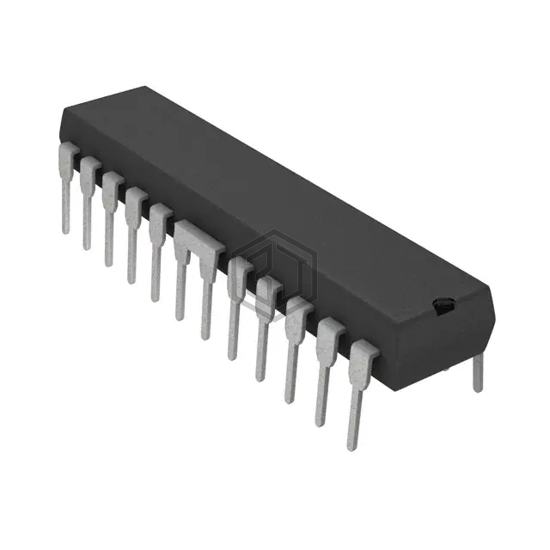

IC MTR DRV BIPOLR 4.5-5.5V 24DIP
A3972SB is a PMIC - Motor Drivers, Controllers manufactured by Allegro MicroSystems. IC MTR DRV BIPOLR 4.5-5.5V 24DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 24-PowerDIP (0.300", 7.62mm).
In Stock: 8,251
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Serial |
| Technology | DMOS |
| Step Resolution | 1 ~ 1/64 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 15V ~ 50V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 24-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-DIP |
A3972SB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLA7076MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 86% | View |
| SLA7071MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 86% | View |
| TB67S158NG | Toshiba Semiconductor and Storage | IC MTR DRV UNIPOLR 10-60V 24SDIP | 79% | View |
| STA7131MPR | Sanken | IC MTR DRV UNIPOLAR 10-44V 18ZIP | 79% | View |
| SMA6822MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 52% | View |
| SMA6852MZ LF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 52% | View |
Submit your RFQ for A3972SB and get a quote within 24 hours.
