1.2A DUAL H-BRIDGE MOTOR DRIVER

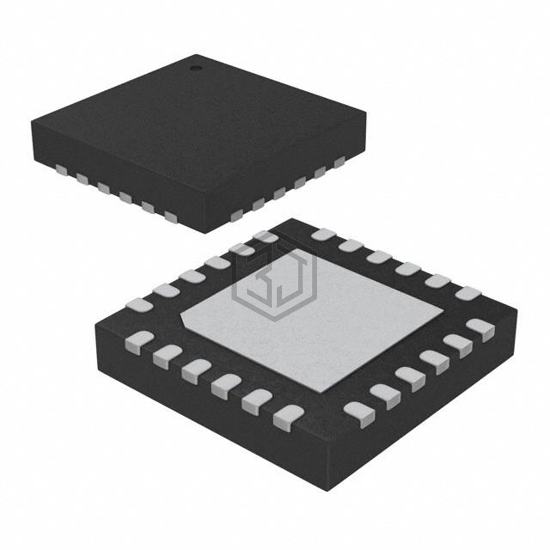

AP1040AEN is a PMIC - Motor Drivers, Controllers manufactured by Asahi Kasei Microdevices/AKM. 1.2A DUAL H-BRIDGE MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 0.2V ~ 5V, package / case 24-WFQFN Exposed Pad.
In Stock: 4,668
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Interface | Parallel |
| Technology | - |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 2A |
| Voltage - Supply | 0.2V ~ 5V |
| Voltage - Load | 8V ~ 32V |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
AP1040AEN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8847RTET | Texas Instruments | IC MOTOR DRIVER DC 16WQFN | 73% | View |
| DRV10983PWPR | Texas Instruments | IC MOTOR DRIVER 8V-28V 24HTSSOP | 71% | View |
| DRV10983SQPWPRQ1 | Texas Instruments | IC MOTOR DRVR 6.2V-28V 24HTSSOP | 67% | View |
| DRV10982SQPWPRQ1 | Texas Instruments | IC MOTOR DRIVER | 67% | View |
| TB62212FTAG,C8,EL | Toshiba Semiconductor and Storage | IC MTR DRVR BIPLR 4.5-5.5V 48QFN | 67% | View |
| DRV8425PPWPR | Texas Instruments | 35V, 2A BIPOLAR STEPPER OR DUAL | 61% | View |
Submit your RFQ for AP1040AEN and get a quote within 24 hours.
