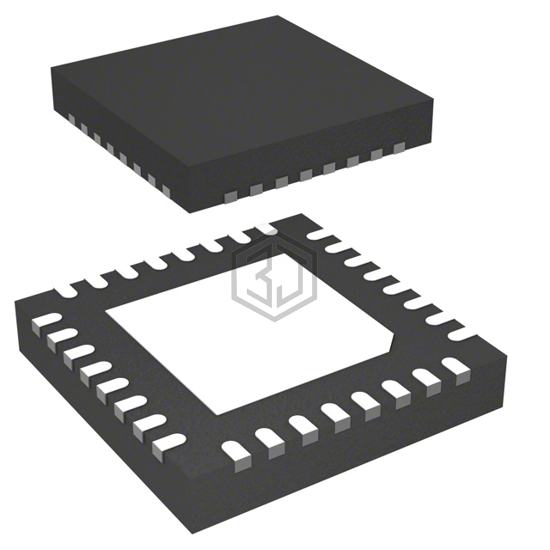

IC MTR DRVR BIPOLAR 3-5.5V 32QFN
AP1021AEN is a PMIC - Motor Drivers, Controllers manufactured by Asahi Kasei Microdevices/AKM. IC MTR DRVR BIPOLAR 3-5.5V 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 32-WFQFN Exposed Pad.
In Stock: 1,155
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (8) |
| Interface | SPI |
| Technology | Power MOSFET |
| Step Resolution | 1 ~ 1/64 |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 2V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
AP1021AEN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STSPIN220 | STMicroelectronics | LOW VOLTAGE STEPPER MOTOR DRIVER | 93% | View |
| LB11685AV-MPB-H | onsemi | IC MOTOR DRIVER 4.5V-18V 24SSOPJ | 78% | View |
| L9942XP1 | STMicroelectronics | IC MTR DRV BIPLR 3-5.3V 24PWRSSO | 75% | View |
| L9942XP1TR | STMicroelectronics | IC MTR DRV BIPLR 3-5.3V 24PWRSSO | 75% | View |
| NCV70522MN003G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 72% | View |
| L9997ND013TR | STMicroelectronics | IC MOTOR DRIVER 7V-16.5V 20SO | 63% | View |
Submit your RFQ for AP1021AEN and get a quote within 24 hours.
