CELERON 6305E 8GB DDR4, 32GB SS

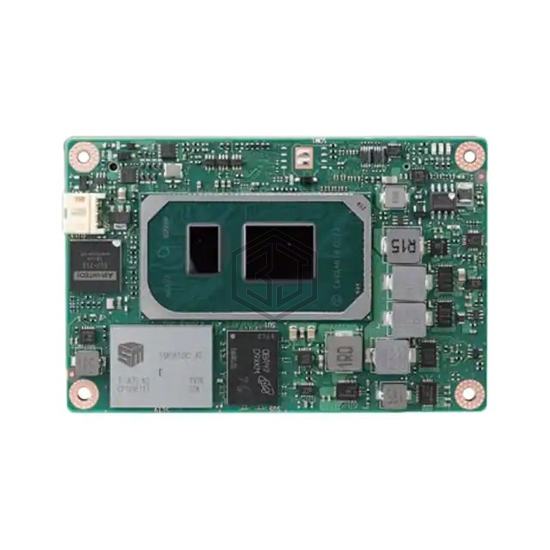

SOM-7583CR-S8A1 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by Advantech Corp. CELERON 6305E 8GB DDR4, 32GB SS. Key specifications: operating temperature 0°C ~ 60°C, size / dimension 3.31" x 2.17" (84mm x 55mm), power (watts) 15W.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Celeron® 6305E |
| Speed | 1.8GHz |
| Number of Cores | 2 |
| Power (Watts) | 15W |
| Cooling Type | Fan |
| Size / Dimension | 3.31" x 2.17" (84mm x 55mm) |
| Form Factor | COM Express Basic Module |
| Expansion Site/Bus | CAN, GPIO, I²C, SMBus, LPC, PCIe |
| RAM Capacity/Installed | 0GB/8GB |
| Storage Interface | SATA 3.0 (2) |
| Video Outputs | DDI, DP, LCD, Multi-Display, VGA |
| Ethernet | 10/100/1000Mbps |
| USB | USB 2.0 (8), USB 3.2 (2) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | - |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | 0°C ~ 60°C |
Submit your RFQ for SOM-7583CR-S8A1 and get a quote within 24 hours.
