SMARC E3950 8G LPD4 64G EMMC WI-

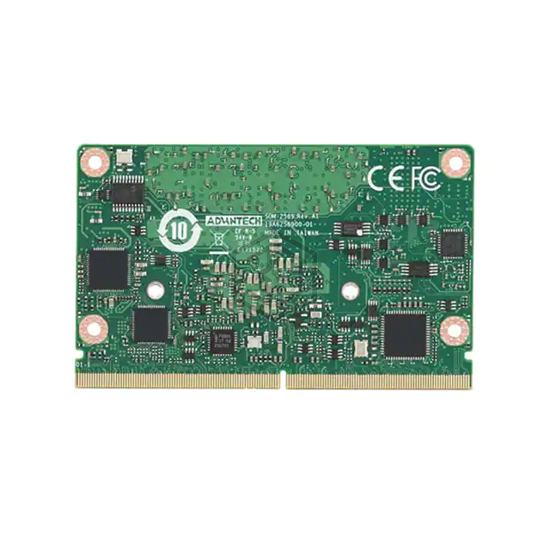

SOM-2569CNCCA-S7A1 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by Advantech Corp. SMARC E3950 8G LPD4 64G EMMC WI-. Key specifications: operating temperature 0°C ~ 60°C, size / dimension 3.23" x 1.97" (82mm x 50mm), power (watts) 12W.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Atom x7-E3950 |
| Speed | 1.6GHz |
| Number of Cores | 4 |
| Power (Watts) | 12W |
| Cooling Type | Fan |
| Size / Dimension | 3.23" x 1.97" (82mm x 50mm) |
| Form Factor | SMARC 2.0 |
| Expansion Site/Bus | CANBus, HD-A, I²C, LPC, PCIe, SMBus |
| RAM Capacity/Installed | 8GB/8GB |
| Storage Interface | SATA 3.0 (1) |
| Video Outputs | DP, DVI, HDMI, LCD, LVDS |
| Ethernet | 10/100/1000Mbps, RJ45(2) |
| USB | USB 2.0 (6), USB 3.0 (2) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | 12 |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | 0°C ~ 60°C |
Submit your RFQ for SOM-2569CNCCA-S7A1 and get a quote within 24 hours.
