INTEL ATOM X6425E 16GLPDR4

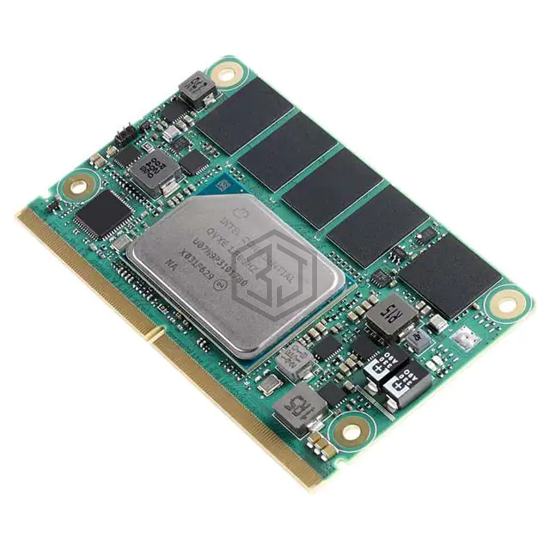

SOM-2532DCBC-U0A1 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by Advantech Corp. INTEL ATOM X6425E 16GLPDR4. Key specifications: operating temperature 0°C ~ 60°C, size / dimension 3.23" x 1.97" (82mm x 50mm), power (watts) 12W.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Atom® x6425E |
| Speed | 2GHz |
| Number of Cores | 4 |
| Power (Watts) | 12W |
| Cooling Type | - |
| Size / Dimension | 3.23" x 1.97" (82mm x 50mm) |
| Form Factor | SMARC2.1.1 |
| Expansion Site/Bus | CAN, GPIO, I²C, I²S, SPI, PCIe |
| RAM Capacity/Installed | 0GB/16GB |
| Storage Interface | eMMC, SATA 3.0 (1) |
| Video Outputs | DP++, eDP, HDMI, LCD, LVDS, MIPI-DSI, Multi-Display |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (6), USB 3.2 (2) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | - |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | 0°C ~ 60°C |
Submit your RFQ for SOM-2532DCBC-U0A1 and get a quote within 24 hours.
