AC/DC CNVT 3.3V 5V +/-12V 2X5V

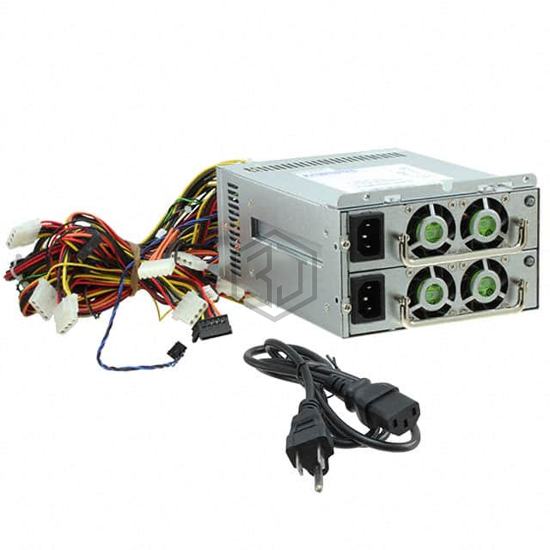

RPS8-750ATX-XE is a AC DC Converters manufactured by Advantech Corp. AC/DC CNVT 3.3V 5V +/-12V 2X5V. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 60°C, voltage - input 100 ~ 240 VAC, size / dimension 7.87" L x 5.91" W x 3.31" H (200.0mm x 150.0mm x 84.0mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 5 |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Voltage - Output 5 | 5V |
| Voltage - Output 6 | 5V |
| Current - Output 1 | 24 A |
| Current - Output 2 | 30 A |
| Current - Output 3 | 60.9 A |
| Current - Output 4 | 500 mA |
| Current - Output 5 | 4 A |
| Current - Output 6 | - |
| Power (Watts) | 750W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 60°C |
| Features | PFC, PMBus™ |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.87" L x 5.91" W x 3.31" H (200.0mm x 150.0mm x 84.0mm) |
| Approval Agency | CB, CCC, CE, CUL, TUV |
| Standard Number | - |
Submit your RFQ for RPS8-750ATX-XE and get a quote within 24 hours.
