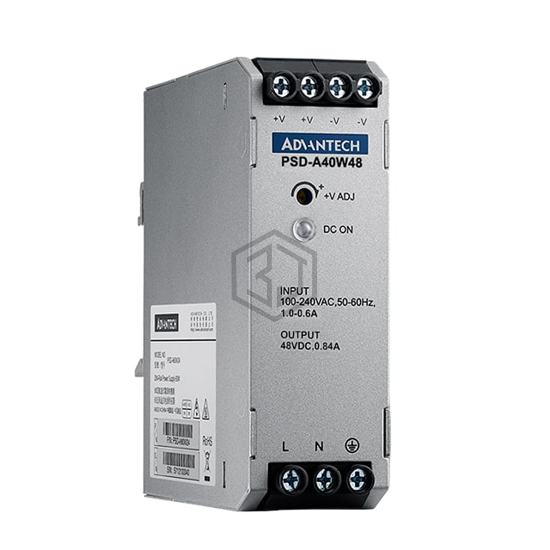

AC/DC CONVERTER 48V 40W
PSD-A40W48 is a Industrial, DIN Rail Power Supplies manufactured by Advantech Corp. AC/DC CONVERTER 48V 40W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 840mA, size / dimension 3.55" L x 1.26" W x 3.94" H (90.2mm x 32.0mm x 100.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 840mA |
| Power (Watts) | 40W |
| Voltage - Isolation | 1.5 V |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.55" L x 1.26" W x 3.94" H (90.2mm x 32.0mm x 100.0mm) |
| Approval Agency | CB, CCC, CE, TUV, UL |
| Standard Number | - |
Submit your RFQ for PSD-A40W48 and get a quote within 24 hours.
