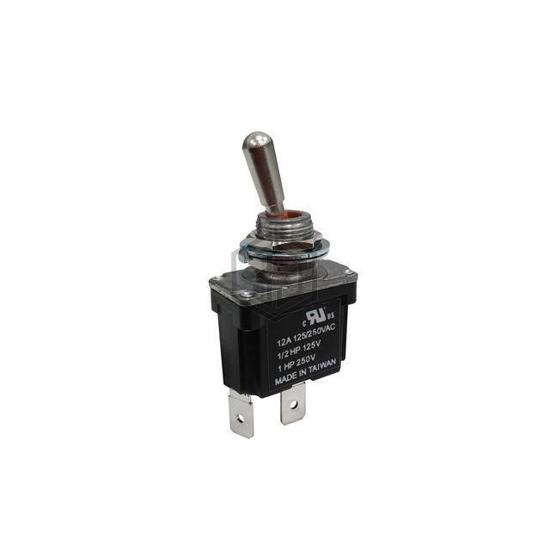

IP68 SEALED POWER TOGGLE SWITCH,
SW-T4-1A-E-TA1-01 is a Toggle Switches manufactured by Adam Tech. IP68 SEALED POWER TOGGLE SWITCH,. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 85°C, voltage rating - ac 125 V, current rating (amps) 12A (AC).
In Stock: 206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 12A (AC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Actuator Type | Standard Round with Cap |
| Actuator Length | 16.20mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Bushing Thread | 15/32-32 |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
