CONN RCPT FMALE 10P SOLDER CUP

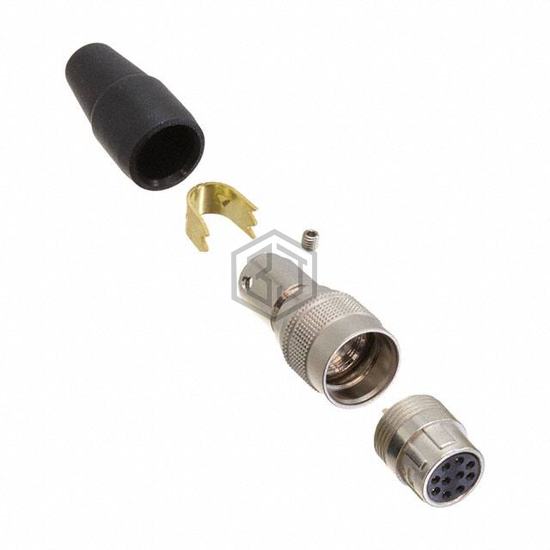

SD-PNN10-FFLAL-SX0-000 is a Circular Connectors manufactured by Adam Tech. CONN RCPT FMALE 10P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), color Black, Silver, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 10 |
| Shell Size - Insert | DIN |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Detent Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.291" (7.39mm) |
| Operating Temperature | - |
Submit your RFQ for SD-PNN10-FFLAL-SX0-000 and get a quote within 24 hours.
