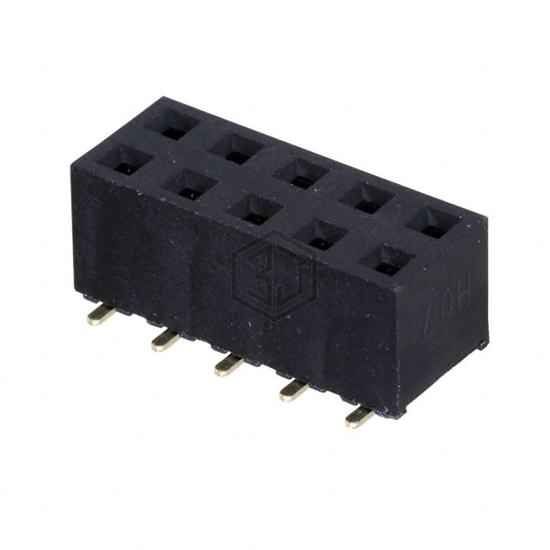

RECEPTACLE STRIP 10P 2.54MM PITC
RS2BE-10-G-SMT is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Adam Tech. RECEPTACLE STRIP 10P 2.54MM PITC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 250VAC, current rating (amps) 3A.
In Stock: 290
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom Entry, Pass Through |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.198" (5.03mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250VAC |
Submit your RFQ for RS2BE-10-G-SMT and get a quote within 24 hours.
