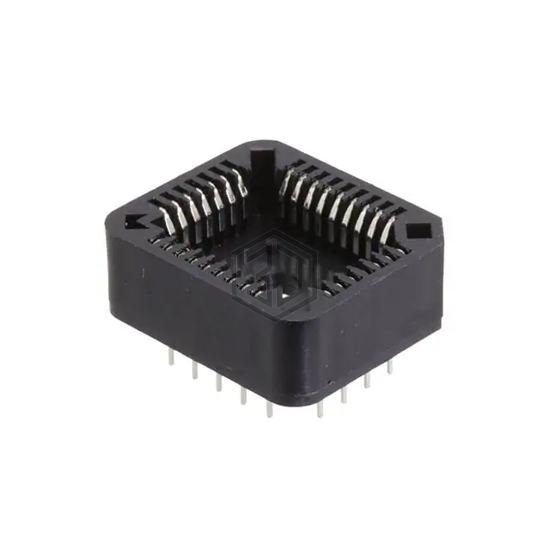

PLCC 32P THROUGH HOLE
PLCC-32-AT is a Sockets for ICs, Transistors manufactured by Adam Tech. PLCC 32P THROUGH HOLE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Solder.
In Stock: 104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for PLCC-32-AT and get a quote within 24 hours.
