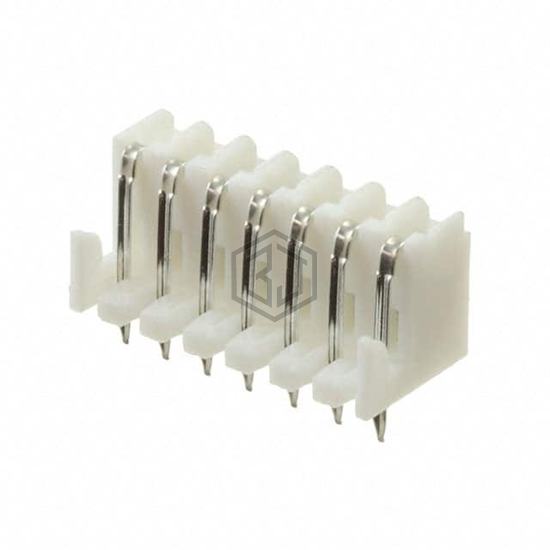

RECEPTICAL WITH HOOKS 7P 2.54MM
PCE-C-07 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Adam Tech. RECEPTICAL WITH HOOKS 7P 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250VAC, current rating (amps) 3A.
In Stock: 358
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom Entry |
| Contact Type | Non-Gendered |
| Style | Board to Board or Cable |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Natural |
| Insulation Height | 0.276" (7.00mm) |
| Contact Length - Post | 0.146" (3.70mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Hooks |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250VAC |
