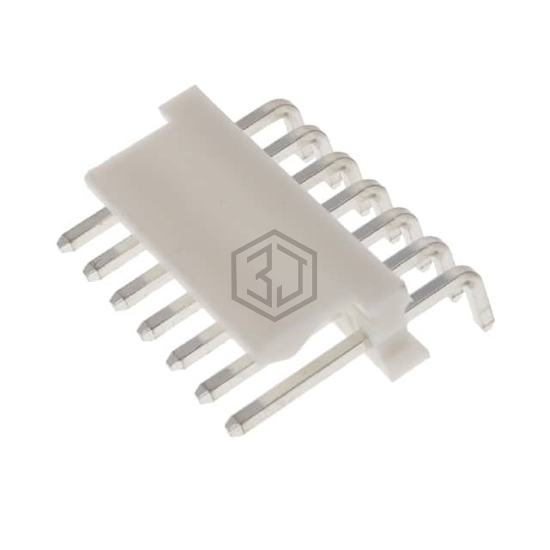

CONN HEADER R/A 7POS 3.96MM
LHD-07-TRA is a Rectangular Connectors - Headers, Male Pins manufactured by Adam Tech. CONN HEADER R/A 7POS 3.96MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, contact material Brass, current rating (amps) 7A.
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.449" (11.40mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.300" (7.62mm) |
| Contact Shape | Square |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | White |
| Current Rating (Amps) | 7A |
| Voltage Rating | - |
Submit your RFQ for LHD-07-TRA and get a quote within 24 hours.
