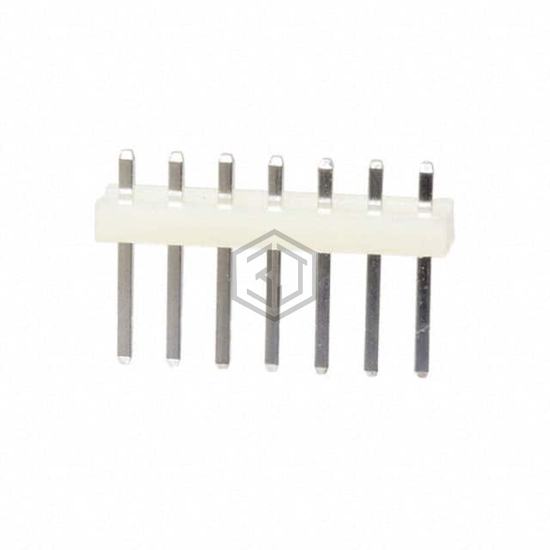

CONN HEADER VERT 7POS 3.96MM
LHB-07-SA2 is a Rectangular Connectors - Headers, Male Pins manufactured by Adam Tech. CONN HEADER VERT 7POS 3.96MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage rating 250VAC, contact material Brass.
In Stock: 1,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.413" (10.50mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | 0.689" (17.50mm) |
| Insulation Height | 0.126" (3.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | White |
| Current Rating (Amps) | 7A |
| Voltage Rating | 250VAC |
Submit your RFQ for LHB-07-SA2 and get a quote within 24 hours.
