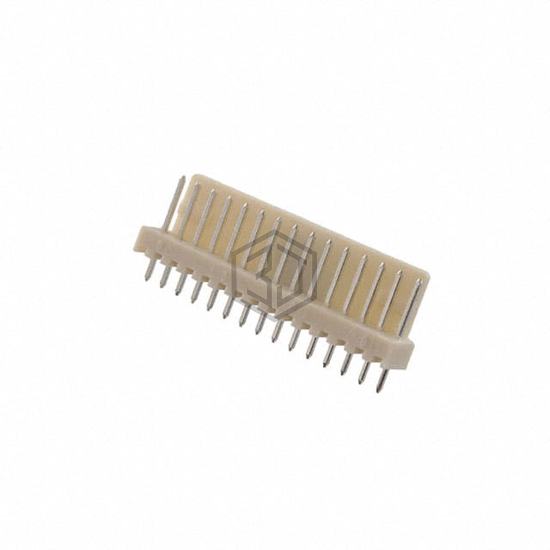

CONN HEADER VERT 15POS 2.54MM
LHA-15-TS is a Rectangular Connectors - Headers, Male Pins manufactured by Adam Tech. CONN HEADER VERT 15POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 250VAC, contact material Brass.
In Stock: 797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.291" (7.40mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | 0.559" (14.20mm) |
| Insulation Height | 0.134" (3.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | Ivory |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250VAC |
Submit your RFQ for LHA-15-TS and get a quote within 24 hours.
