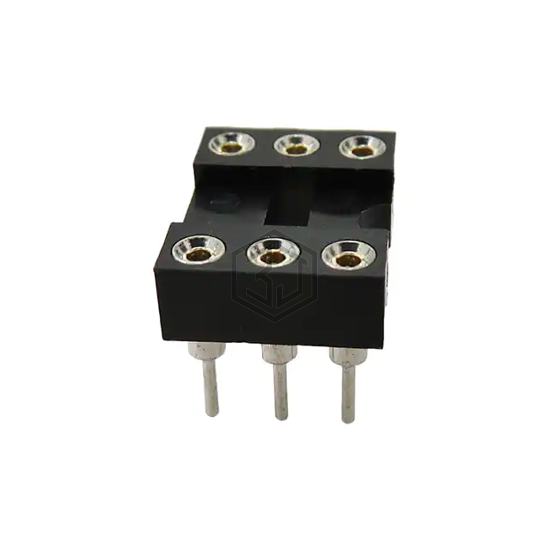

MACHINE PIN SOCKET, IC, DIP, 6P
ICM-306-1-GT-HT is a Sockets for ICs, Transistors manufactured by Adam Tech. MACHINE PIN SOCKET, IC, DIP, 6P. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, housing material Polyphenylene Sulfide (PPS), termination Solder.
In Stock: 214
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 6 (2 x 3) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for ICM-306-1-GT-HT and get a quote within 24 hours.
