CONN D-SUB PLUG/RCPT 9P R/A SLDR

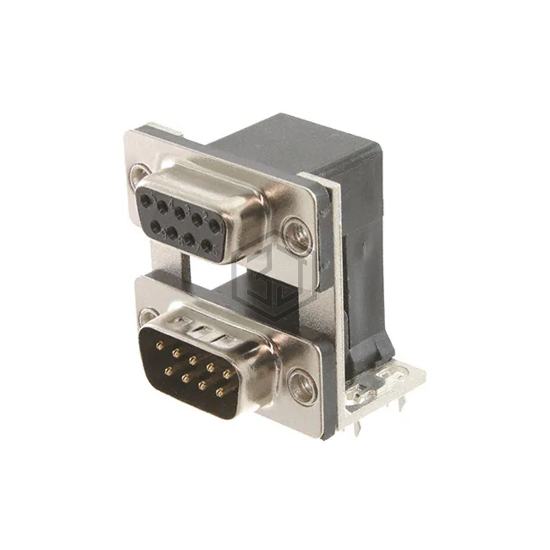

DPD-09-01-B3 is a D-Sub Connectors manufactured by Adam Tech. CONN D-SUB PLUG/RCPT 9P R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 3A, termination Solder, number of positions 9, 9.
In Stock: 202
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins; Receptacle, Female Sockets |
| Number of Positions | 9, 9 |
| Number of Rows | 2, 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.00µin (0.127µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
Submit your RFQ for DPD-09-01-B3 and get a quote within 24 hours.
