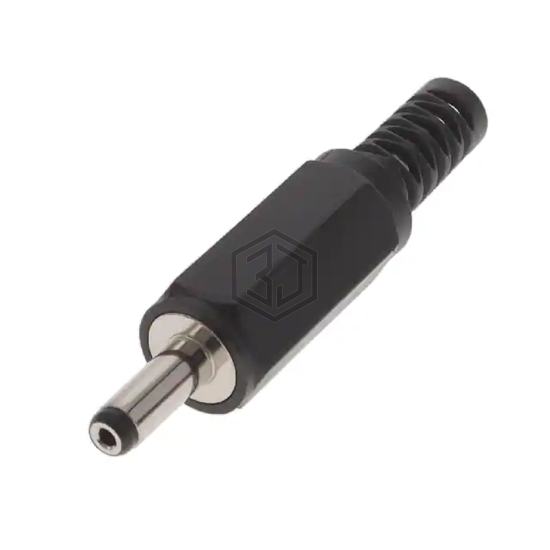

CONN PWR PLUG 1.3 X 3.5MM SOLDER
ADP-1.3/3.5/9.5-SR is a Barrel - Power Connectors manufactured by Adam Tech. CONN PWR PLUG 1.3 X 3.5MM SOLDER. Key specifications: mounting type Free Hanging (In-Line), termination Solder, number of positions/contacts 2 Conductors, 2 Contacts, connector type Plug.
In Stock: 641
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.50mm OD (0.138") |
| Actual Diameter | 0.051" (1.30mm ID), 0.138" (3.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Strain Relief |
| Insulation Color | Black |
| Voltage - Rated | - |
| Current Rating (Amps) | - |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for ADP-1.3/3.5/9.5-SR and get a quote within 24 hours.
