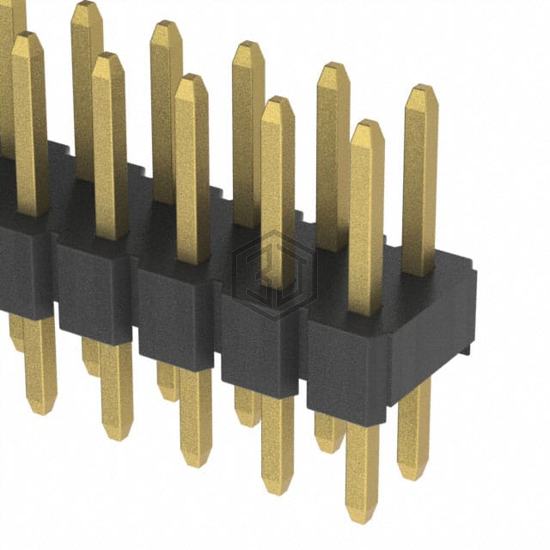

CONN HEADER VERT 14POS 2MM
2PH2-14-UA is a Rectangular Connectors - Headers, Male Pins manufactured by Adam Tech. CONN HEADER VERT 14POS 2MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250VAC, contact material Brass.
In Stock: 4,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.154" (3.91mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 0.343" (8.70mm) |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 250VAC |
Submit your RFQ for 2PH2-14-UA and get a quote within 24 hours.
