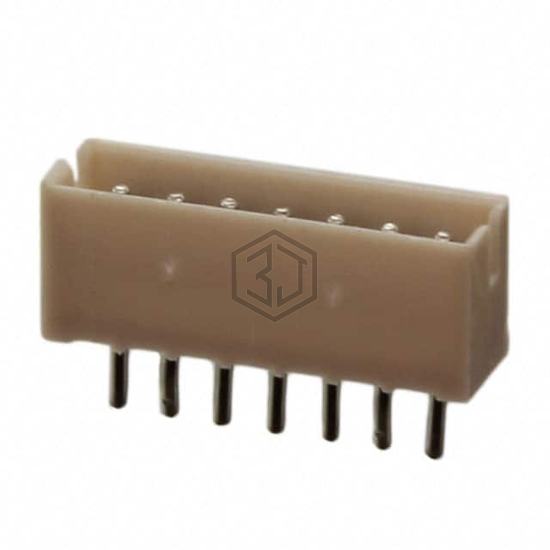

CONN HEADER VERT 7POS 1.5MM
15SH-A-07-TS is a Rectangular Connectors - Headers, Male Pins manufactured by Adam Tech. CONN HEADER VERT 7POS 1.5MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 50VAC/DC, contact material Brass.
In Stock: 3,988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.106" (2.69mm) |
| Overall Contact Length | - |
| Insulation Height | 0.181" (4.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Ivory |
| Current Rating (Amps) | 1A (AC/DC) |
| Voltage Rating | 50VAC/DC |
Submit your RFQ for 15SH-A-07-TS and get a quote within 24 hours.
