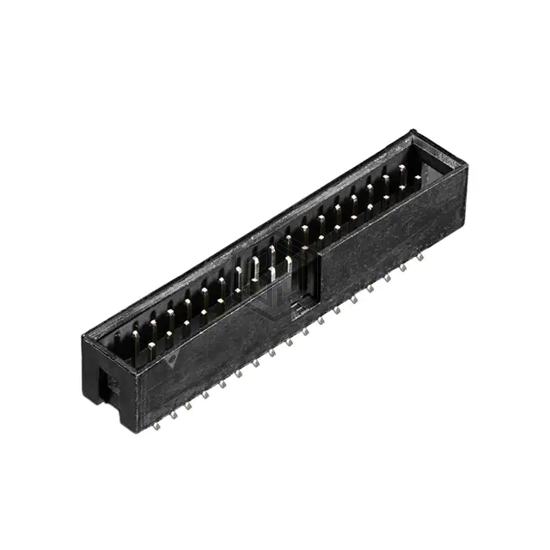

2X17 (34 PIN) IDC BOX HEADER - 0
5357 is a Rectangular Connectors - Headers, Male Pins manufactured by Adafruit Industries LLC. 2X17 (34 PIN) IDC BOX HEADER - 0. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 2A.
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.354" (9.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for 5357 and get a quote within 24 hours.
