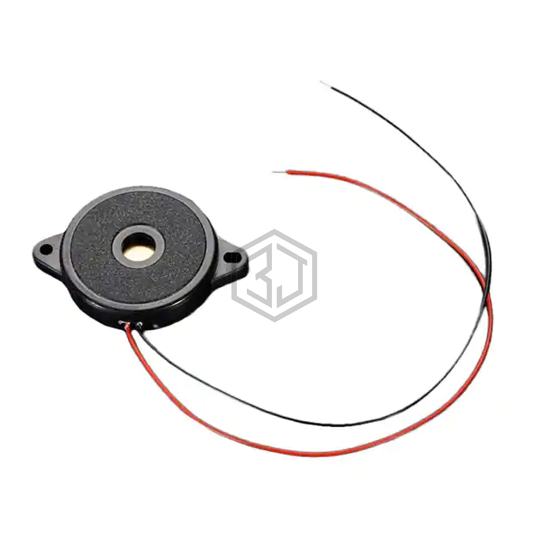

BUZZER PIEZO 12V 30MM FLANGE
1739 is a Alarms, Buzzers, and Sirens manufactured by Adafruit Industries LLC. BUZZER PIEZO 12V 30MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 3.5mA.
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 2.65kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 3.5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
Submit your RFQ for 1739 and get a quote within 24 hours.
