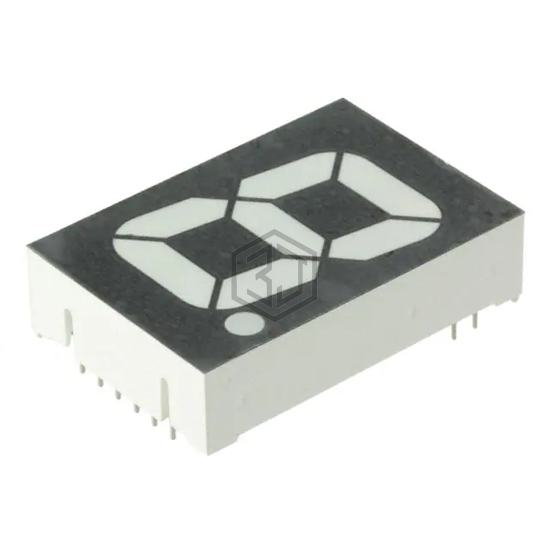

DISP LED 7SEG 1" SGL RGB 25DIP
1399 is a Display Modules - LED Character and Numeric manufactured by Adafruit Industries LLC. DISP LED 7SEG 1" SGL RGB 25DIP. Key specifications: voltage - forward (vf) (typ) 2.1V Red, 3.5V Green, 3.4V Blue, package / case 25-DIP Module, color Red, Green, Blue (RGB), current - test 20mA Red, 20mA Green, 20mA Blue.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Display Format | - |
| Number of Characters | 1 |
| Size / Dimension | 1.398" H x 0.945" W x 0.343" D (35.50mm x 24.00mm x 8.70mm) |
| Digit/Alpha Size | 1.00" (25.40mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red, Green, Blue (RGB) |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.5V Green, 3.4V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Millicandela Rating | 244mcd Red, 552mcd Green, 100mcd Blue |
| Wavelength - Peak | 616nm Red, 523nm Green, 468nm Blue |
| Power Dissipation (Max) | 150mW |
| Package / Case | 25-DIP Module |
Submit your RFQ for 1399 and get a quote within 24 hours.
