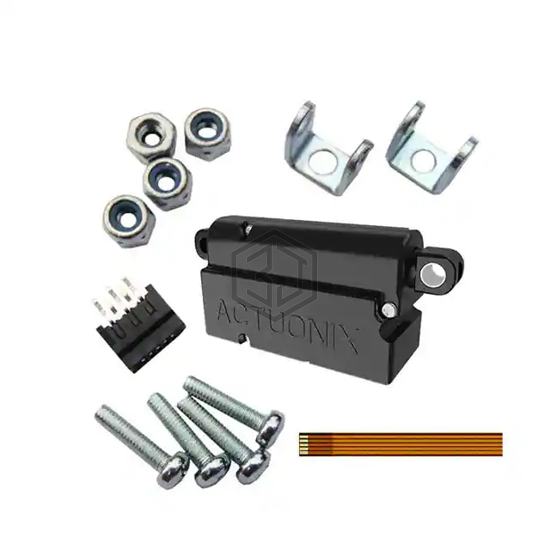

PQ12-S MICRO LINEAR ACTUATOR
PQ12-63-12-S is a Electric Actuators/Cylinders manufactured by Actuonix Motion Devices Inc. PQ12-S MICRO LINEAR ACTUATOR. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 12VDC, termination style Wire Leads with Connector, ingress protection IP54 - Dust Protected, Water Resistant.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Linear Actuator |
| Motor Type | Brushed |
| Stroke Length | 0.787" (20.00mm) |
| Load Force (Dynamic) | 10.12lbf (45.0N) |
| Load Force (Static) | - |
| Speed | 0.59 in/s (15.0 mm/s) |
| Duty Cycle | 20% |
| Voltage - Rated | 12VDC |
| Construction | Ball Screw |
| Accuracy | ±0.10mm |
| Acceleration | - |
| Features | Limit Switches |
| Gear Reduction Ratio | 63 |
| Feedback Type | - |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -10°C ~ 50°C |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Approval Agency | - |
Submit your RFQ for PQ12-63-12-S and get a quote within 24 hours.
