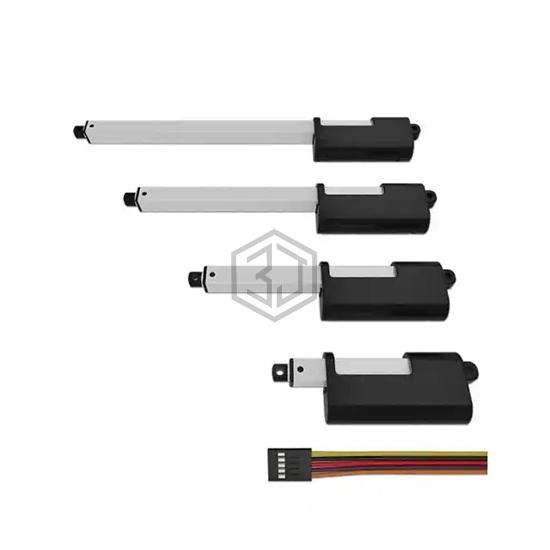

L16-P MICRO LINEAR ACTUATOR
L16-100-35-12-P is a Electric Actuators/Cylinders manufactured by Actuonix Motion Devices Inc. L16-P MICRO LINEAR ACTUATOR. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 12VDC, termination style Wire Leads with Connector, ingress protection IP54 - Dust Protected, Water Resistant.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Linear Actuator |
| Motor Type | Brushed |
| Stroke Length | 3.937" (100.00mm) |
| Load Force (Dynamic) | 11.24lbf (50.0N) |
| Load Force (Static) | 56.20lbf (250.0N) |
| Speed | 1.26 in/s (32.0 mm/s) |
| Duty Cycle | 20% |
| Voltage - Rated | 12VDC |
| Construction | Ball Screw |
| Accuracy | ±0.40mm |
| Acceleration | - |
| Features | - |
| Gear Reduction Ratio | 35 |
| Feedback Type | Potentiometer |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -10°C ~ 50°C |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Approval Agency | - |
Submit your RFQ for L16-100-35-12-P and get a quote within 24 hours.
