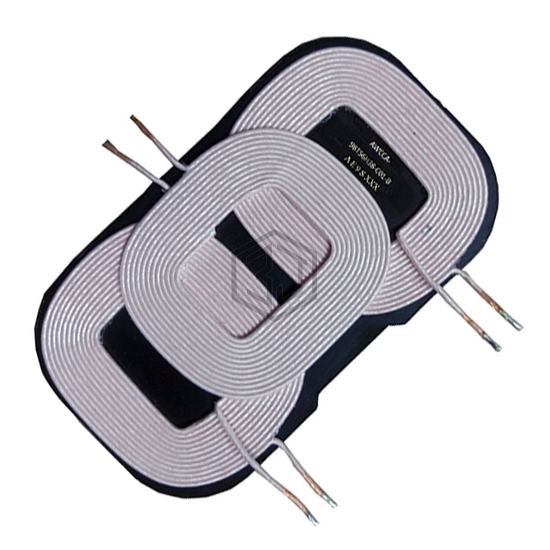

TRANSMITTER 3 COIL 1 LAYER
AWCCA-98T56H38-C01-B is a Wireless Charging Coils manufactured by Abracon LLC. TRANSMITTER 3 COIL 1 LAYER. Key specifications: operating temperature -25°C ~ 85°C, size / dimension 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm), tolerance ±10%.
In Stock: 109
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 3 Coil, 1 Layer |
| Inductance | 12.0µH, 11.5µH, 12.0µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 56mOhm |
| Q @ Freq | 120 @ 100kHZ, 110 @ 100kHZ |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -25°C ~ 85°C |
| Size / Dimension | 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) |
Submit your RFQ for AWCCA-98T56H38-C01-B and get a quote within 24 hours.
